40x40mm Thermoelectric Power Generator Peltier Module TEG 150 Degree High Temperature Chip SP1848-27145

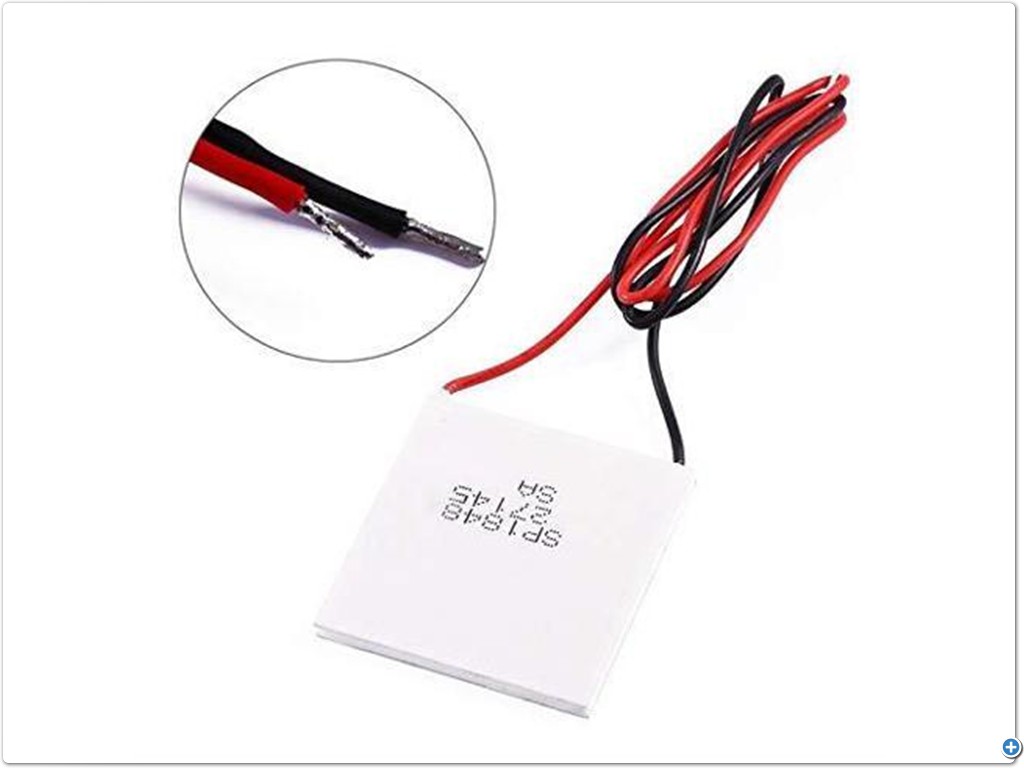

SP1848-27145 150C Peltier Thermoelectric Module

Power can be generated by these magical cells based on the Peltier effect. With the SP1848-27145 150C Peltier Thermoelectric Module, you can achieve a maximum temperature of 150C, which will produce different voltages and currents depending on the temperature.

TEGs, also known as Peltier Modules, detect temperature differentials on each side. You can use this temperature differential detection to generate electricity.

SP1848-27145 150C Peltier Thermoelectric Module will start generating voltage after applying heat on one side and cold on the other side. With mA of current, the SP1848-27145 40x40mm Thermoelectric Power Generator TEG 150C Peltier Module will generate moderate amounts of voltage.

Thermoelectric Generator (TEG) modules are semiconductor-based electronic components that function as small generators.

• A temperature of 20°C, 40°C, 60°C, 80°C, 100°C
• Voltage at the open circuit (V) 0.97 1.8 2.4 3.6 4.8
• The current (mA) is 225 368 469 558 669

Tips for operating:

• Do not exceed the module’s maximum operating temperature.
• A life expectancy of 200,000 hours can be expected.
• Long-term failure rate: 0.2%.

Features:

• It is small and lightweight, making it convenient to use.
• Power generation-specific design.
• Cooling cells that have been tested for quality.
• Easy to install and operate.
• You can charge your cell phone with the 5V booster board
